Tyre debeaders

A tyre debeader is a recycling machine that removes the steel bead wire embedded around the inner edges of a tyre before shredding or further processing.

This is an essential first step in any tyre recycling operation. It helps protect shredder blades, reduces wear on downstream factory equipment, and allows any recovered wire and broken beads to enter their own recycling stream.

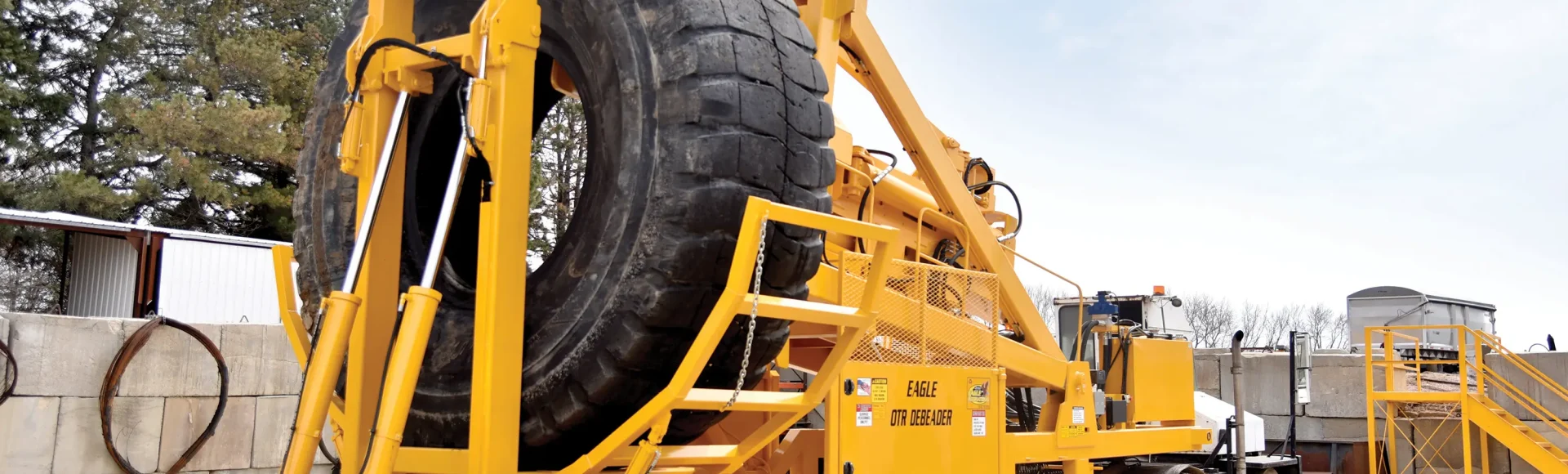

An OTR tyre debeader is a heavy-duty machine that removes steel bead bundles from large off-the-road tyres used on mining, earthmoving and heavy-industry equipment.

As OTR tyres are much larger and heavier than standard car or truck tyres, these bead pullers use a powerful hydraulic system to extract the bundles before downsizing or shredding.

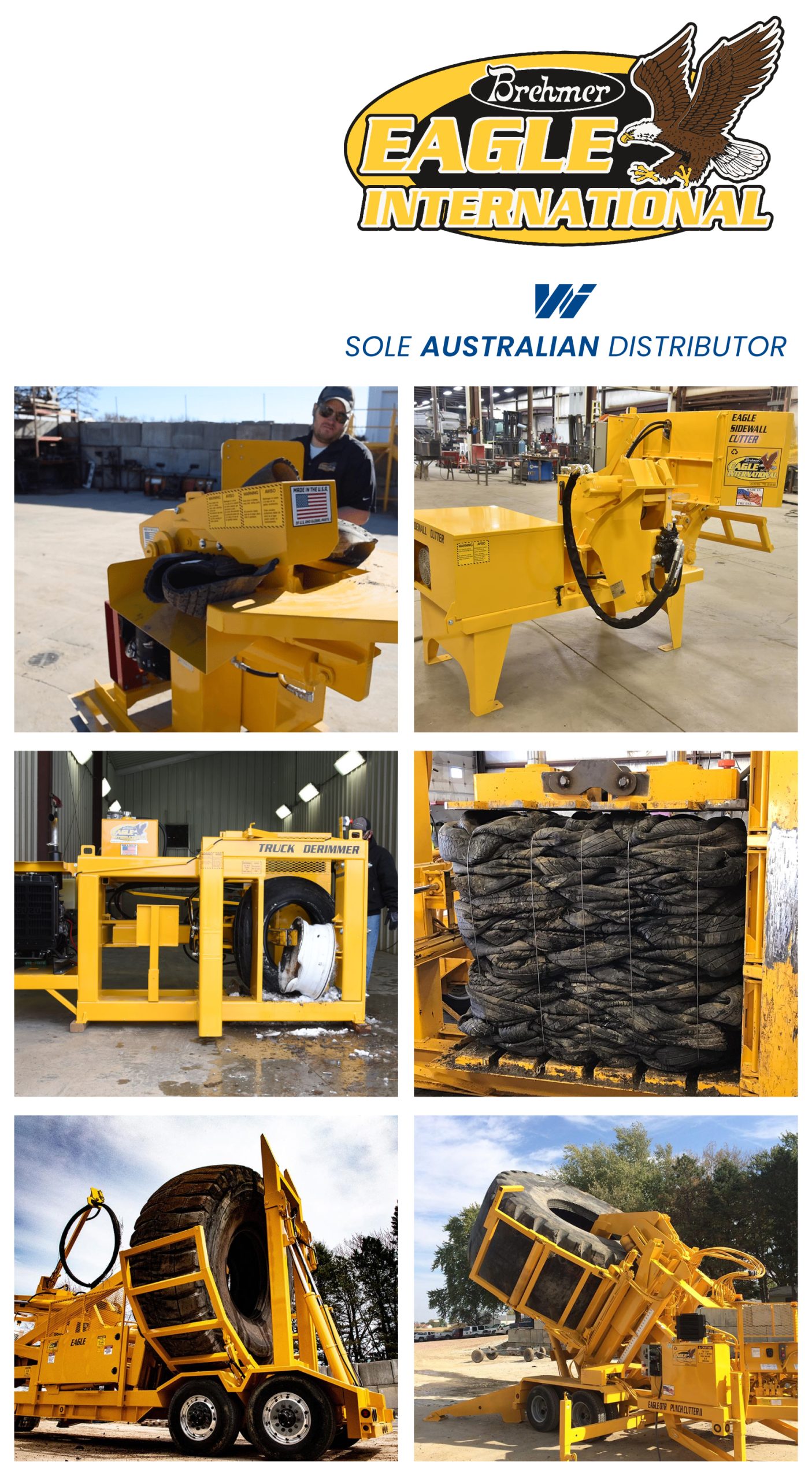

Waste Initiatives’ Eagle OTR Tyre Debeader can process end-of-life OTR tyres up to 4m outside diameter or 63-inch rim diameter.

A tyre debeader works by holding the tyre in place, gripping the bead area and using hydraulic force to pull the steel bead bundle from the surrounding rubber before shredding.

The hydraulic system delivers steady pulling power, while adjustable components help the machine handle various tyre sizes, from trucks and buses through to heavy-duty OTR applications.

Tyre bead wire should be removed before shredding because the concentrated steel bundle can increase wear on shredder blades and other moving parts.

Debeading also reduces steel contamination in the rubber stream and recovers the bead wire as a separate recyclable material. This helps the tyre recycling line run more efficiently and produce cleaner processed rubber.

Yes. A tyre must be removed from its wheel rim before debeading because the rim blocks access to the steel bead wire embedded inside the tyre.

If end-of-life tyres arrive still mounted on their rims, a derimmer or rim-separation machine must complete that first step. The rim-free tyre can then move to the debeader before downstream cutting, shredding or granulation.

The machines perform separate steps in the tyre recycling process. A tyre derimmer separates the wheel rim from a mounted tyre, whereas a tyre debeader extracts the steel bead wire embedded within the tyre itself.

Yes. Steel bead wire removed from tyres can be collected separately and sent to an appropriate metal recycler.

Extracting the wire before shredding keeps it in larger bundles and reduces the amount of rubber mixed through the steel. This can simplify handling and produce a cleaner, recyclable steel fraction.

Acceptance requirements and scrap prices vary between metal recyclers.

Yes. OTR tyre debeaders can process the large end-of-life tyres generated by mines and other heavy-industry operations.

For instance, the Eagle OTR Tyre Debeader handles tyres from 20.5R25 to 59/80R63 and offers diesel or electric power options for different operating environments.

Removing bead bundles on site prepares OTR tyres for later cutting, shredding or transport while protecting downstream equipment from concentrated bead steel.

Waste Initiatives supplies tyre debeaders for a wide range of end-of-life tyres, from models suited to tyres up to 1,200mm in diameter through to heavy-duty OTR equipment for large mining tyres up to four metres in diameter, including 59/80R63 tyres.

Always select a machine that suits your largest tyre size, required processing capacity and downstream equipment.

Choose a tyre debeader that matches the tyres entering your facility and the processing requirements of your wider recycling line. This helps to prevent bottlenecks and unnecessary equipment wear.

Key factors to consider include:

• The types and maximum dimensions of the tyres
• The number of tyres processed each hour or day
• Whether you need portable or stationary equipment
• Available electric, diesel or gas power
• Site layout and tyre-loading requirements
• The capacity of downstream cutters and shredders

If you’re still unsure, contact our expert team for tailored advice on selections.

The cost of a tyre debeader in Australia depends on its supported tyre sizes, processing capacity, power source, configuration and optional equipment.

Contact Waste Initiatives today for an accurate quote tailored to your requirements.

Yes. Our national service network covers every Australian state and territory, providing scheduled servicing, emergency support, spare parts and technical assistance for waste-processing equipment. Contact us to get started.
