Powerful, mobile and efficient, the German Engineered Olnova Model 5 delivers premium shredding performance for C&D waste, concrete, asphalt, wood and more.
Overview

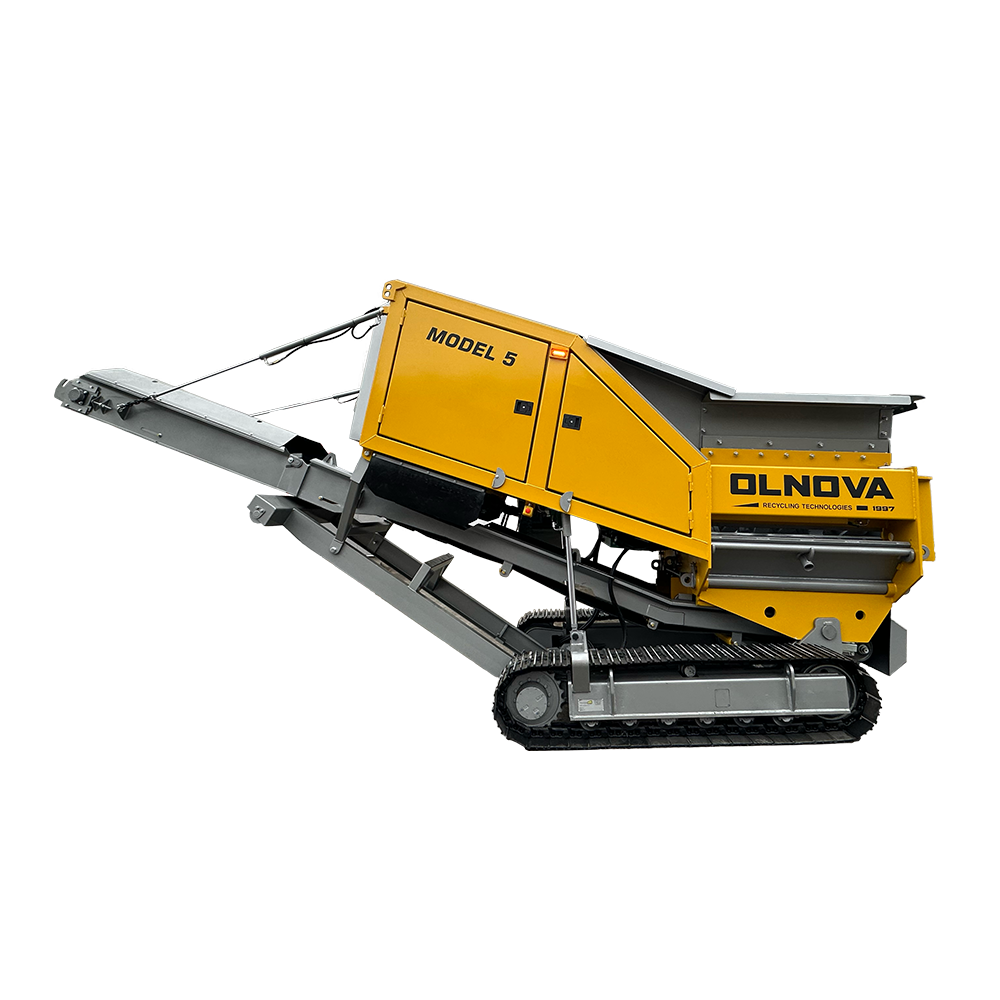

The Olnova Model 5 is a high-performance mobile shredder purpose-built for on-site processing of construction and demolition waste, asphalt, concrete, wood waste, plastic, and biomass. As part of the Vertech equipment range, it offers unmatched flexibility thanks to its track suspension and hook lift mechanism, making it ideal for challenging job sites and dynamic recycling operations.
At its core, the Model 5 features cost-effective and efficient VOLVO TAD series diesel engines, engineered for maximum uptime and reduced fuel consumption. Its advanced shredding chamber includes a quick shaft replacement system, hydraulically controlled side combs, and reverse shaft mode, enhancing safety and ease of maintenance. With three shredding modes—wood, universal, and asynchronous—the machine adapts to varied input materials with precision.
Additional features include a tilting hopper for versatile loading, overbelt magnet for metal recovery, and a hydraulic discharge conveyor for smooth outfeed. Its Industry 4.0 module allows for global remote diagnostics, performance monitoring, and troubleshooting.
Backed by the Vertech promise of robust, reliable, and future-focused waste processing technology.
Suitable for
C&D Waste
Mattresses
Metal/​Aluminium
Timber
Tyres
Features
-
Cost saving and efficient VOLVO diesel engines
-

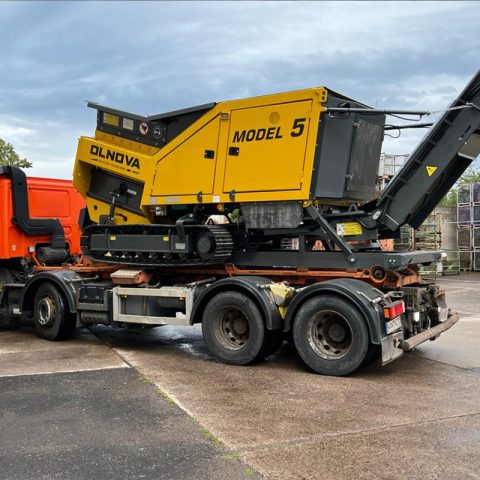

Track Suspension & Hook Lift
-
Quick shaft replacement system
-
Hydraulically controlled side combs
-

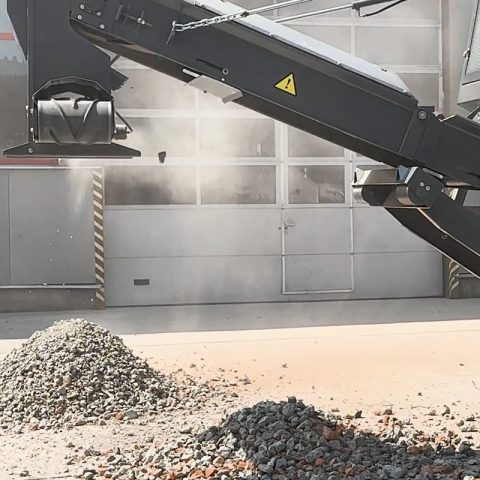

Hydraulic discharge conveyor
-
Reverse shafts mode
-
3 Shredding modes : wood / universal / asynchronous
-
Overbelt magnet
-
Tilting hopper
-
Industry 4.0 – Special module provides remote performance analysis, customer feedback and troubleshooting worldwide
Optional Extras
-
Optional Diverse and Waste Shafts
| Height | 3581 mm |
|---|---|
| Length | 7741 mm |
| Weight | 15T |
| Transportation height | 2629 mm |
| Clearance height | 3100 mm (material discharge height) |
| Throughput indicative | 15-100 T/Hr depending on material |
| Shaft length | 1500 mm |
| Shaft width | 680 mm (dia) |
Product Gallery
