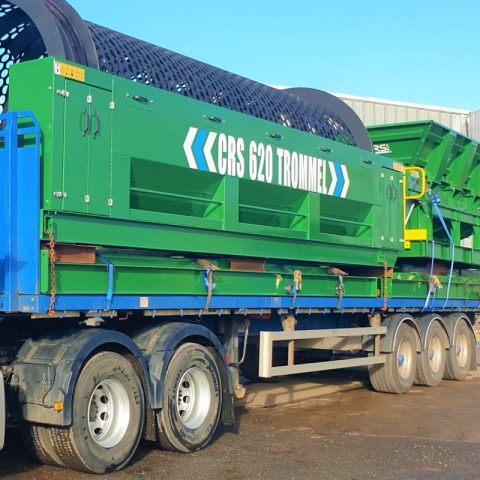

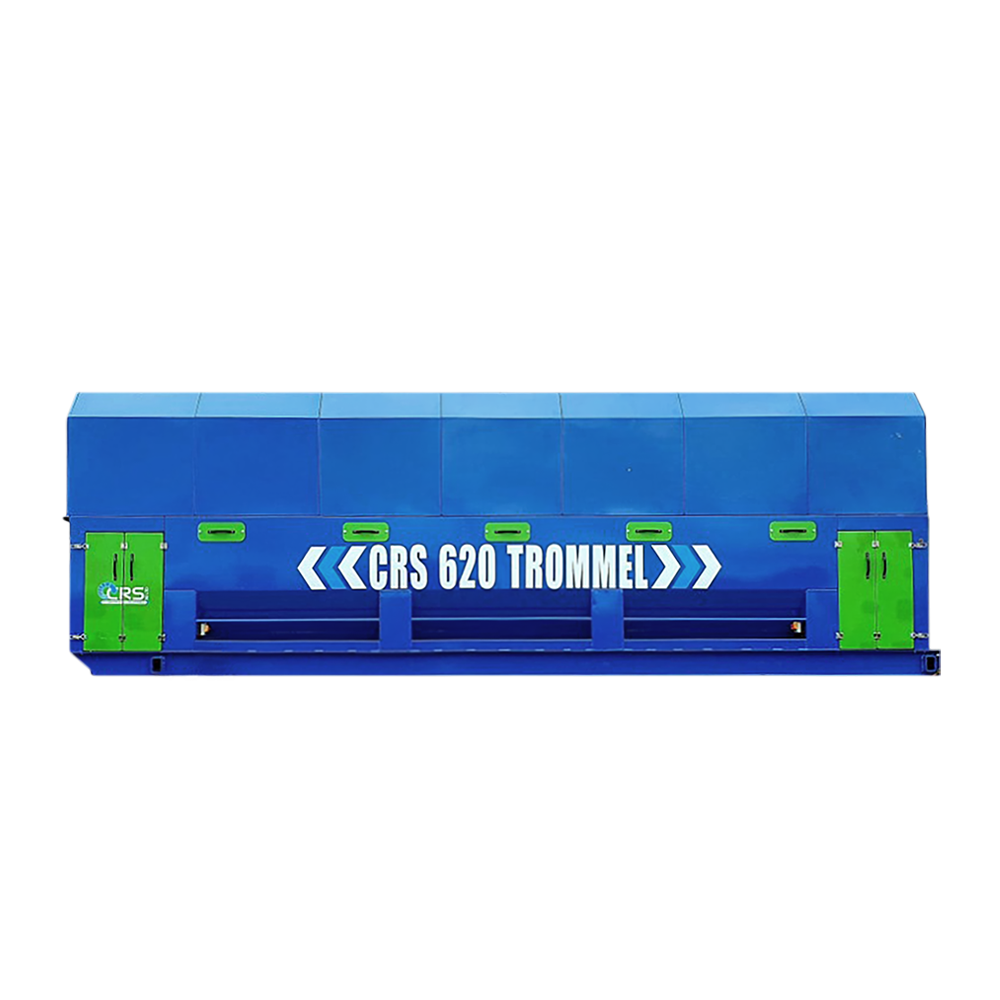

CRS 620 Heavy Duty Trommel

The CRS 620 Heavy Duty Trommel is a robust and versatile stationary screening solution, with a throughput of 70 m³ p/Hr.

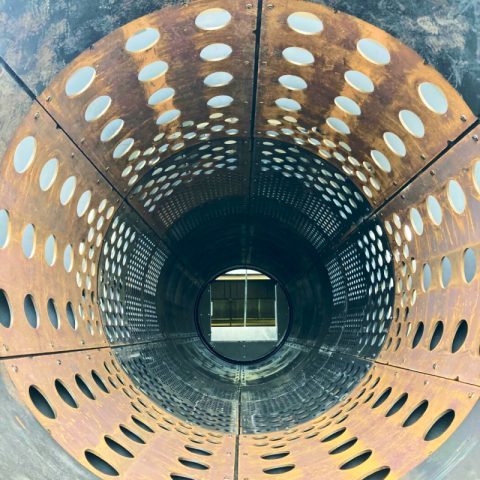

With robust welded construction and a composite chassis ensuring unparalleled durability, this trommel screen boasts a customisable 2000 mm drum diameter and 6000 mm screening length. From 12 to 120 mm, it provides a adaptable range of screening options. Engineered for optimal efficiency and reliability, its heavy-duty plate steel drum includes a bolt-in punch plate for effortless replacement, complemented by SKF bearings integrated throughout the trommel for seamless operation.

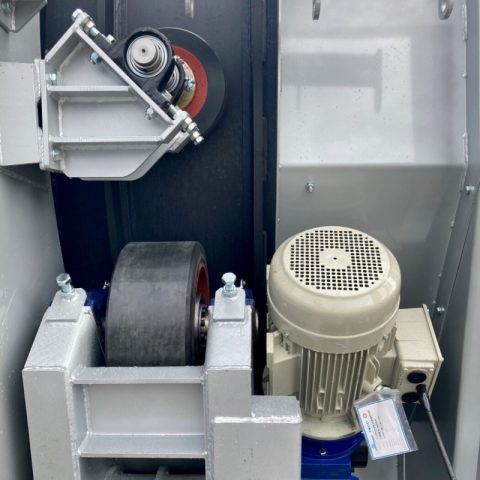

Powered by a robust 4 x 5.5 Kw motor system, with four drive wheels independently driven by a Nord slip-on gear motor drive, offering variable speed control (VSD), to suit different screening requirements, ensuring optimal performance and efficiency in every application.

Safety guards and lifting bars for aggressive screening ensure smooth operation and maintenance, with walkways & covers as standard.

Optional features include hoppers, feeders, side walls, conveyors and secondary screens.

Features

• Heavy Duty weld construction
• High density polyurethane drive wheels
• SKF 75mm and 50mm bearings
• Bolt in heavy duty punch plate for easy changing (thickness & aperture to be agreed)
• Full guards with emergency stops
• Covers

Optional Extras

• Direct Hopper Feeder
• Fines bay Integrated trommel supports. Robust side bay walls and rear push walls to withstand the heaviest of applications
• Brushes
• Low level feeder via incline conveyor to trommel
• Transfer fines conveyor to secondary screen
