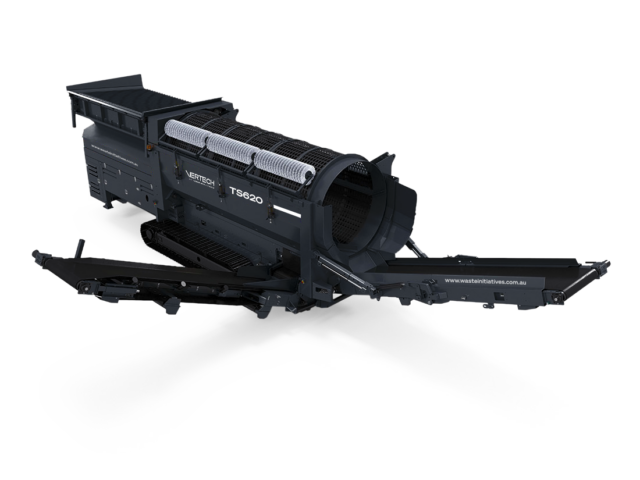

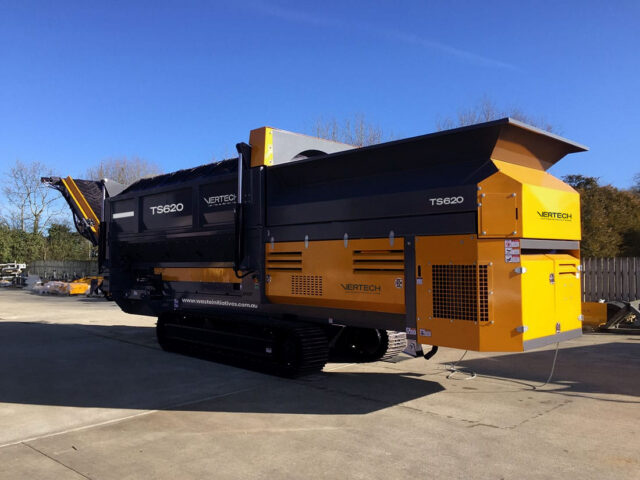

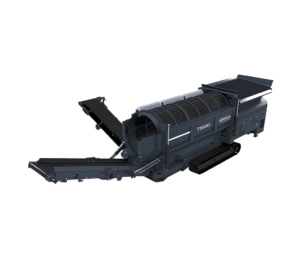

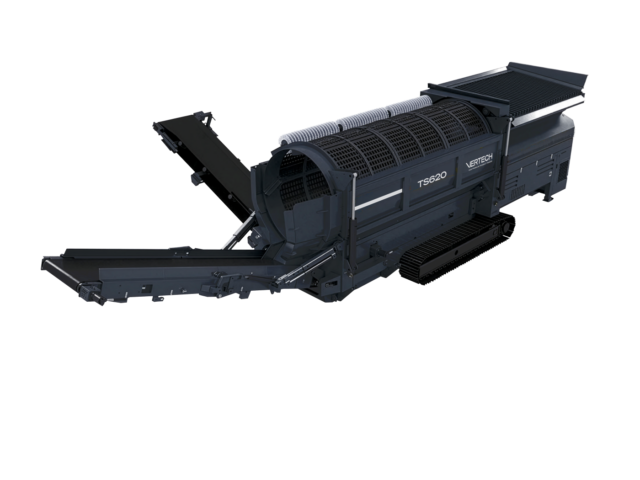

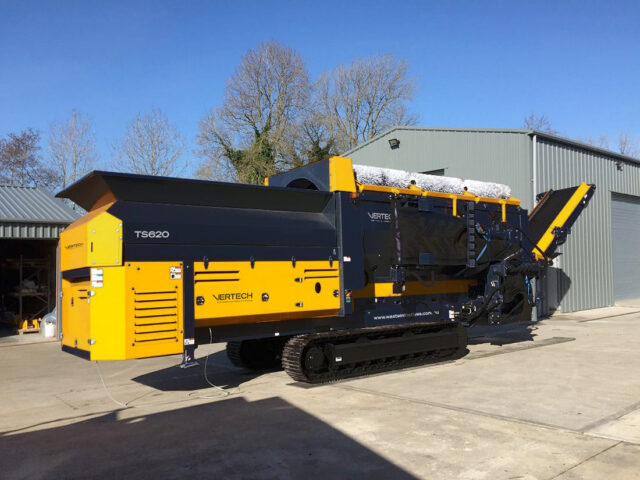

The Vertech TS620 Trommel is a heavy-duty tracked trommel screen designed for high-capacity screening of compost, mulch, green waste, topsoil and recycling materials. Combining mobility, fast setup and efficient material separation, the TS620 is suited to demanding waste and resource recovery operations.
Overview
The Vertech TS620 Trommel is a high-capacity tracked screening solution designed for compost, mulch, topsoil, green waste and recycling applications. Built around a large 5.5 m x 2.0 m screening drum, the TS620 delivers strong throughput, efficient material separation and simple on-site mobility for demanding processing operations.
Features
- Easy change drum for fast material transitions
- Integrated drum cleaning brush for consistent performance
- Large capacity hopper for high-volume loading
- Variable speed conveyors for improved process control
- Tracked chassis for full site mobility
- Diesel powerpack for reliable standalone operation
- Up to 200 tph throughput capacity
- Heavy-duty design for demanding recycling and resource recovery applications
Options
- Alternative screening drum sizes and mesh configurations
- Extended fines conveyor
- Additional stockpiling conveyors
- Dust suppression system
- Remote control operation
- CAT diesel powerpack option
Suitable Materials
- Compost
- Mulch
- Topsoil
- Green waste
- Wood waste
- Light construction and demolition waste
- Recycling fines
- Screened organic material
Built for Australian Conditions
The TS620 Trommel provides Australian operators with a flexible, engineered solution designed to improve material recovery performance without the cost or complexity of fixed infrastructure.
Built for recovery.
Built for mobility.
Built for performance.
Suitable for
C&D Waste
Commingled
Organic Waste
Specifications
Weight 20,000kg
Drum Size 5.5 m x 2.0 m
Capacity Up to 200 TPH
Hopper Capacity 9.6 m³ with extensions
Drum Angle 0–6° hydraulic adjustment
Product Gallery
