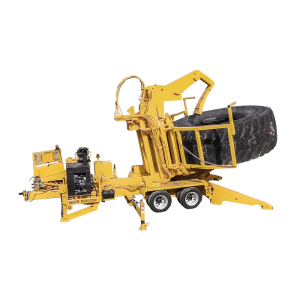

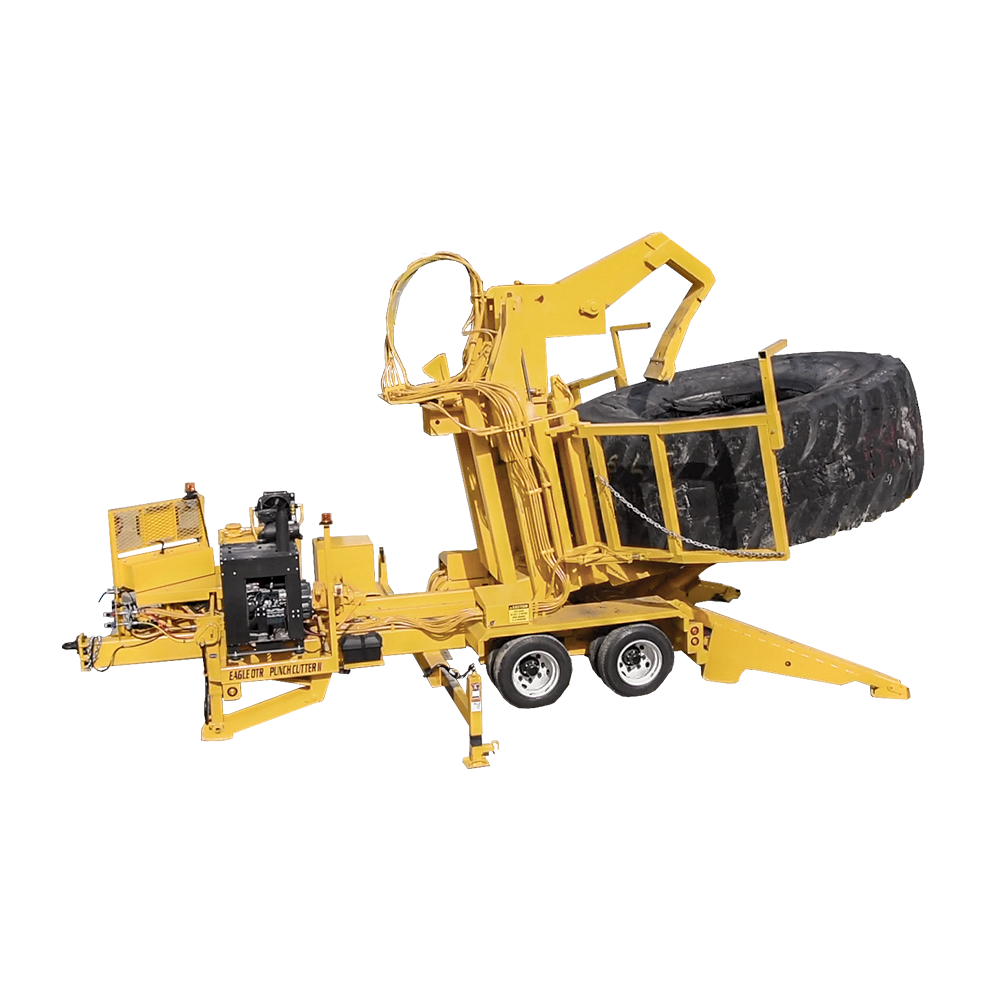

Mobile Tyre Punch Cutter
The Eagle Punch Cutter II is a portable, PLC-controlled machine for splitting OTR tyres by cutting through the tread’s centre, offering easy, precise operation.

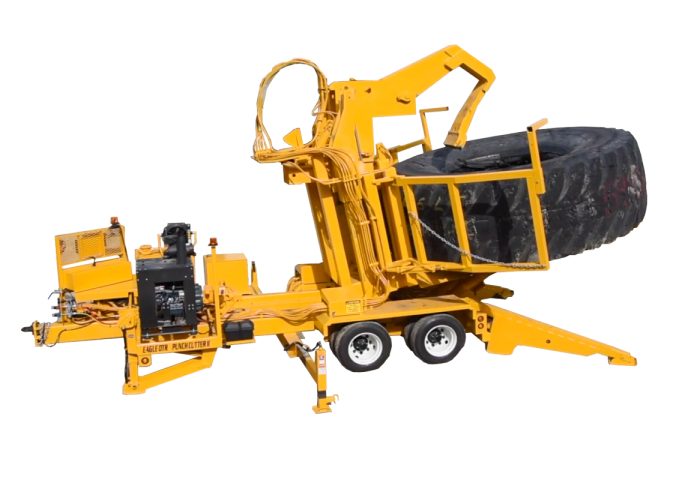

The mobile tyre punch cutter of the range – the Eagle tyre punch cutter II, is designed to split off-the-road (OTR) tyres in half, by cutting through the centre of the tread. It accommodates various tyre sizes, ranging from 39 inches in rim size and 37 inches in tread width up to a 14-foot diameter OTR tyre. The cutter offers both manual operation and an automatic punching mode, enabling it to split tyres without direct supervision.
The machine makes cuts of 5-6 inches at a time using a 10 inch blade. It operates on a turntable that rotates the tyre, allowing it to make precise splits. Once the tyres are halved, they can be further sectioned by the Titan II. For a 12 or 14 foot tyre, the Punch Cutter II can complete the splitting process in about 10-12 minutes.
This equipment is crucial for handling the substantial thickness of rubber found in some OTR tyres, such as the 70/70/57 models, which have up to 14 inches of solid rubber in the shoulder.
Features
- Four hydraulic-powered bed rollers
- Heat-treated alloy 10" punch blade
- Punch cuts up to 8" per operation
- Hydraulically adjustable tyre cage
- PLC automatically turns the tyre and punches
Optional Extras
- Diesel or Electric power options
- Automated radio remote control
Download Brochure
Enquire About
This Product

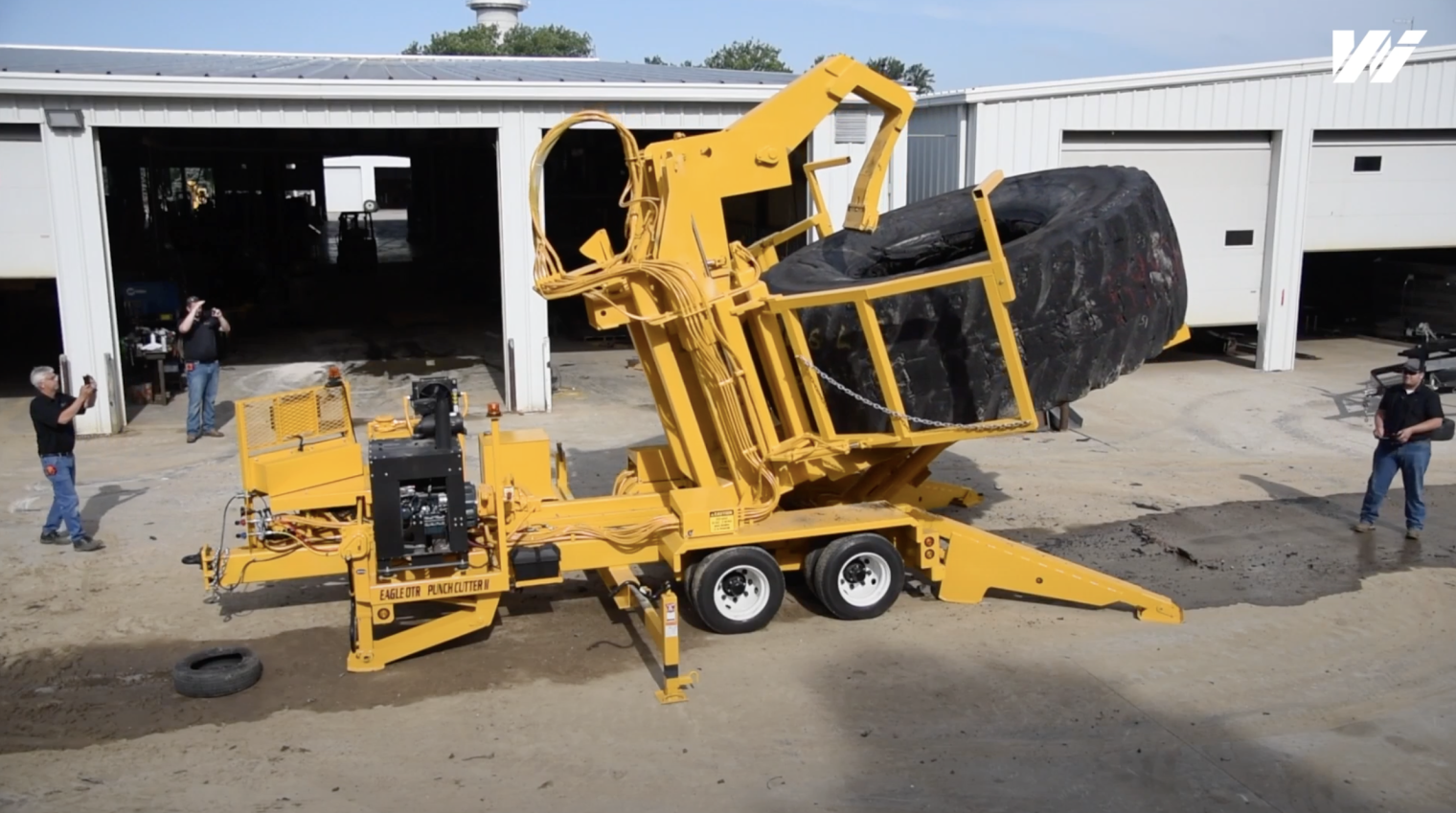

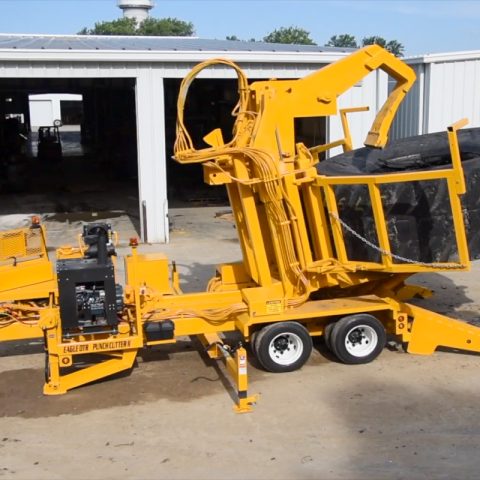

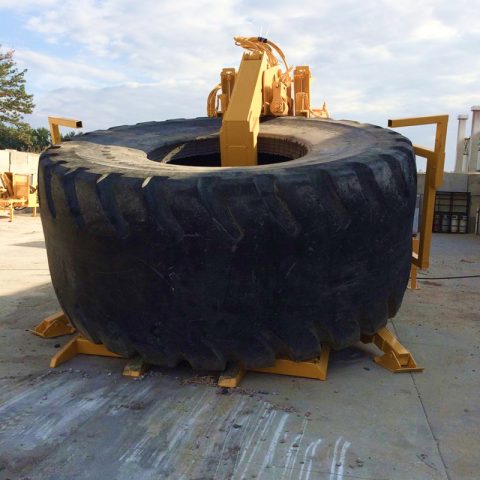

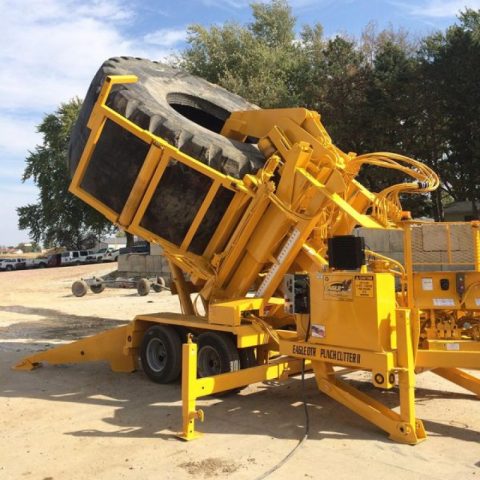

This portable model – the Eagle Punch Cutter II – is engineered to split Off the Road (OTR) tyres down the center of the tread, effectively halving them like a bagel. The machine is positioned on the tyre and rotates around its circumference.
Mobile Tyre Punch Cutter
Our Mobile Tyre Punch Cutter – the Eagle Tyre Punch Cutter II – is a portable, PLC-controlled machine for cleanly splitting OTR tyres with precision and ease.
See Other Recycling Products
-
Mobile Tyre Punch Cutter
Our Mobile Tyre Punch Cutter – the Eagle Tyre Punch Cutter II – is a portable, PLC-controlled machine for cleanly splitting OTR tyres with precision and ease.
-

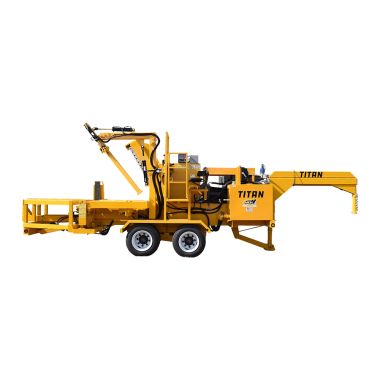

Titan OTR Tyre Cutter
The Eagle Titan is a versatile OTR tyre cutter, capable of cutting tyres up to size 27.00 R49. It features three hydraulically powered rollers for easy tyre positioning and movement. A hydraulic probe secures the tyre during cutting, with cut sizes controlled by the operator. Perfect for Australian facilities needing efficient tyre destruction solutions.
-

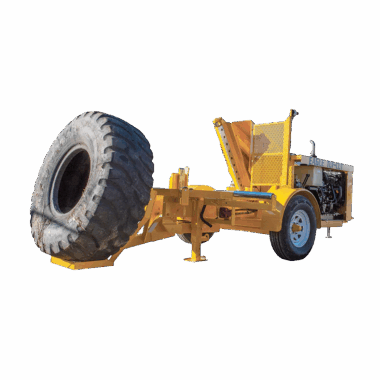

Tuf-Cut Tyre Cutter
