Stokkermill cable recycling systems combine granulation, refining and separation technology to recover valuable copper and aluminium from electrical cable, wiring and other cable waste. The range extends from compact K750 and FLEXI granulators through to complete MULTI-FLEX industrial recycling plants.
Overview
Recover High-Value Copper from Cable Waste
Stokkermill cable recycling systems provide a complete solution for processing copper and aluminium cables, electrical wiring, wiring harnesses and other cable waste into clean, separated material fractions.
From compact cable granulators for lower-volume processors through to complete industrial recycling plants processing tonnes of material per hour, Stokkermill combines size reduction, refining and density separation technologies to efficiently liberate valuable metals from PVC, rubber and other insulating materials.
Turn Waste Cable into a Valuable Resource
Copper and aluminium cable contains valuable recyclable metal, but effectively recovering that value requires more than simply shredding the cable.
The metallic conductor must be liberated from its insulation before the different material fractions can be separated. Stokkermill cable recycling equipment integrates these processing stages to transform cable waste into clean metal and insulation fractions for downstream recycling.
The range extends from the compact K750 for entry-level professional cable processing, through FLEXI, KOMPACT and TURBOFLEX equipment, to high-capacity MULTI-FLEX industrial recycling plants. Stokkermill cable treatment lines can also be integrated with pre-shredders, conveyors and ancillary equipment to create complete recycling systems.
Suitable Materials
Depending on the selected equipment and system configuration, Stokkermill cable recycling technology can process materials including:
- Electrical cable and wire
- Copper cable
- Aluminium cable
- Household cable
- Automotive wiring harnesses
- Telephone and data cable
- Fine and small-diameter wire
- Standard and larger-diameter cable
- Industrial cable
- Copper-aluminium radiators
Stokkermill’s higher-capacity MULTI-FLEX systems are specifically designed to handle small-diameter, standard and larger-diameter cables, while robust grinding mills also allow the processing of aluminium cables and copper-aluminium radiators.
The MULTI-FLEX technology can achieve material purity of up to 99.9%, although actual output will depend on feed material and system configuration.
Stokkermill Cable Recycling Range
| Range | Models | Indicative Input Capacity | Positioning |
|---|---|---|---|
| K750 | K750 / 5.5, K750 / 7.5 | 70–110 kg/h | Entry-level compact cable granulation |
| FLEXI | K140, K200, K250 | 100–300 kg/h | Compact cable granulators with upgrade path to TURBO refining |
| KOMPACT | K140, K200 | 100–200 kg/h | Complete compact cable recycling systems |
| TURBOFLEX | K400, K500 | 200–400 kg/h | Higher-capacity cable recycling with TURBO refining |
| MULTI-FLEX | M Series | Approx. 350–2,500 kg/h | Industrial cable recycling plants |

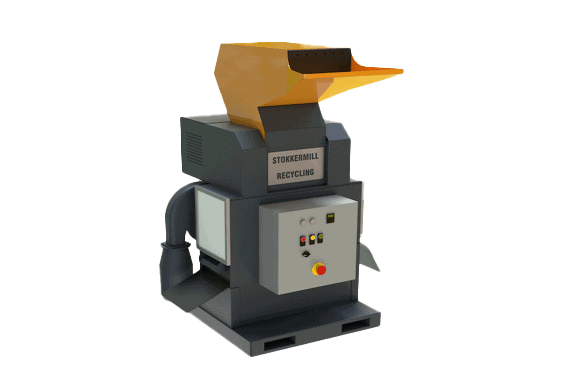

K750 Compact Cable Granulator
The Stokkermill K750 provides an entry point for professional cable recycling, combining a three-rotating-blade and two-stationary-blade mill with a dry densimetric separation table in a compact, plug-and-play machine.
Interchangeable classifier screens allow the K750 to process regular electrical cable, fine telecommunications and data wire, and larger rigid cable. Stokkermill positions the K750 for businesses entering professional cable recycling or looking to recover additional value from internally generated electrical scrap.
| Model | Power | Indicative Input Capacity | Cable Diameter |
|---|---|---|---|
| K750 / 5.5 | 5.5 kW | 70–90 kg/h | 1–25 mm* |
| K750 / 7.5 | 7.5 kW | 90–110 kg/h | 1–35 mm* |
*Very rigid cables should be cut into pieces shorter than 100 mm before processing. Capacity varies according to the material being processed.
Best suited to: Lower-volume cable processing, electrical scrap generators and businesses entering professional cable recycling.

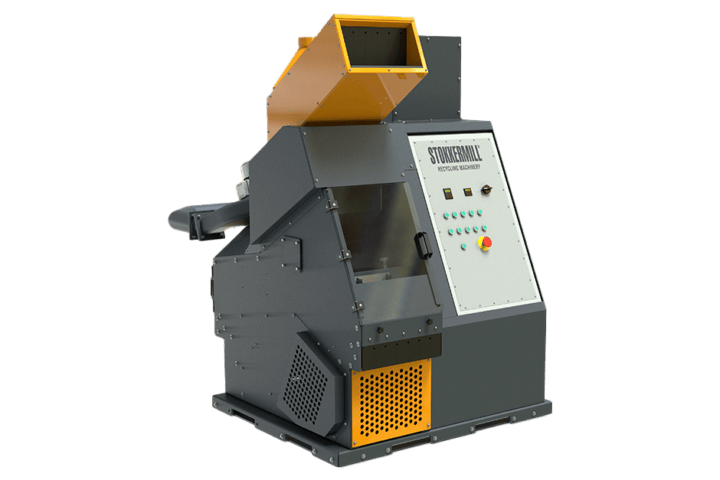

FLEXI Cable Granulators
Stokkermill FLEXI cable granulators provide the next step in processing capacity, with models designed for copper and aluminium cable as well as copper-aluminium radiators.

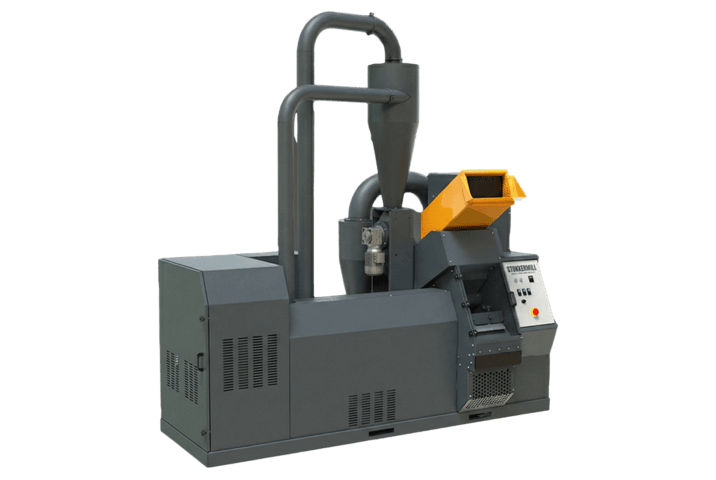

The FLEXI range uses robust three-rotating-blade grinding mills manufactured from a single steel block without welded parts. A particularly useful feature is the ability to subsequently install Stokkermill’s TURBO refining device, providing an upgrade pathway as processing requirements increase.

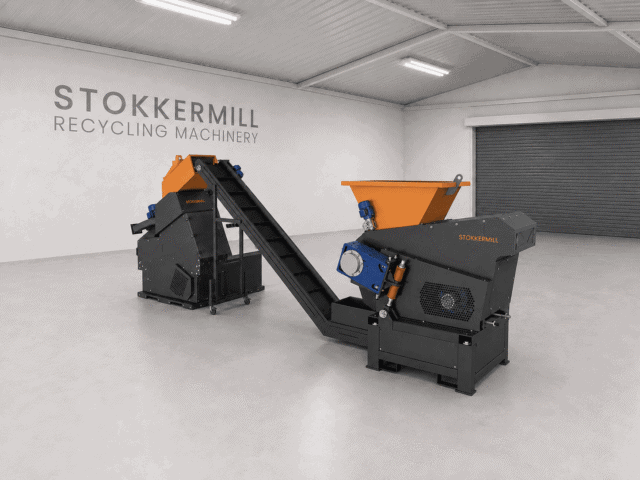

FLEXI granulators can also be connected to PS Series pre-shredders using NST conveyors to form part of a complete cable recycling plant.
| Model | Power | Indicative Input Capacity | Dimensions | Weight |
|---|---|---|---|---|
| FLEXI K140 | 14 kW | 100–150 kg/h | 1,500 × 1,700 × 2,080 mm | 1,000 kg |
| FLEXI K200 | 20 kW | 200–250 kg/h | 1,500 × 1,700 × 2,130 mm | 1,200 kg |
| FLEXI K250 | 25 kW | 250–300 kg/h | 1,500 × 3,000 × 2,130 mm | 1,500 kg |
*Production capacity may vary according to cable quality and the classifier screen installed.
Best suited to: Growing cable recyclers and scrap processors requiring higher throughput with the ability to expand processing capability.
KOMPACT Cable Recycling Systems
The KOMPACT range provides complete compact cable recycling systems for the granulation and separation of copper and aluminium cable.
Unlike the standalone FLEXI granulators, the KOMPACT configurations shown in Stokkermill’s supplied cable recycling literature incorporate the additional equipment required to create a more complete processing system. The systems are designed to separate copper and aluminium from insulating coatings such as PVC and rubber while maintaining a relatively compact footprint.
| Model | Installed Power | Indicative Input Capacity |
|---|---|---|
| KOMPACT K140 | 30 kW | 100–150 kg/h |
| KOMPACT K200 | 36 kW | 150–200 kg/h |
Best suited to: Businesses seeking an integrated compact cable recycling solution rather than an individual granulator.

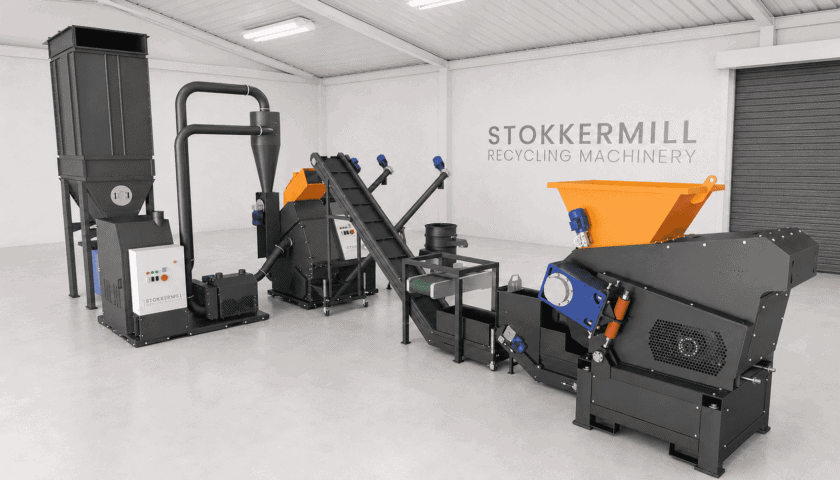

TURBOFLEX Cable Recycling Systems
Stokkermill TURBOFLEX systems add greater processing capacity and refining capability for businesses processing more demanding cable streams.
The supplied Stokkermill literature describes TURBOFLEX as a complete cable recycling system engineered to granulate copper and aluminium cables and separate the metallic fraction from PVC or rubber insulation.
| Model | Installed Power | Indicative Input Capacity |
|---|---|---|
| TURBOFLEX K400 | 55 kW | 200–250 kg/h |
| TURBOFLEX K500 | 68 kW | 350–400 kg/h |
Best suited to: Commercial cable recyclers requiring increased processing capacity and enhanced refining.

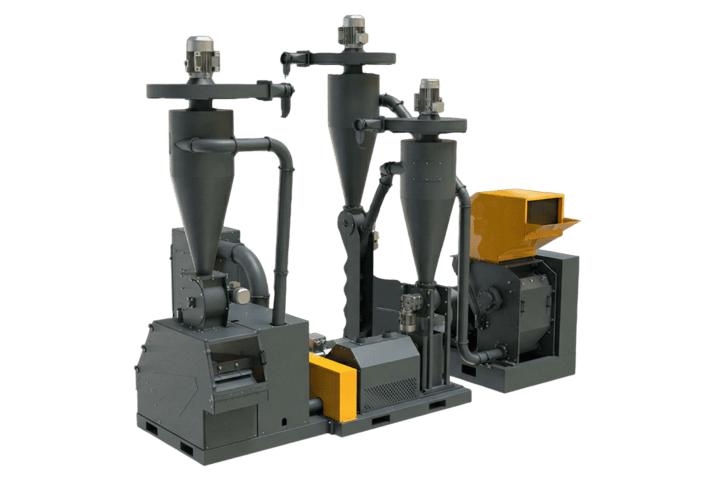

MULTI-FLEX Industrial Cable Recycling Plants
At the upper end of the Stokkermill cable recycling range, MULTI-FLEX Turbo Zig-Zag systems are designed for high-volume commercial cable processing.
MULTI-FLEX combines three principal processing units: a grinding mill, refining turbine and densimetric table. The separate grinding mill improves system flexibility and helps with heat dissipation, vibration management and routine maintenance.
A TURBO cell refiner allows very fine cables, including telephone, data and capillary cables, to be processed without requiring extensive pre-sorting. The Zig-Zag system provides additional separation of rigid cable fractions.
| Model | Power | Indicative Input Capacity |
|---|---|---|
| M-60 | 85 kW | 350–450 kg/h |
| M-80 | 100 kW | 450–600 kg/h |
| M-100 | 126 kW | 650–800 kg/h |
| M-100 PRO | 140 kW | 800–1,000 kg/h |
| M-150 | 215 kW | 1,000–1,200 kg/h |
| M-150 PRO | 250 kW | 1,500–2,000 kg/h |
| M-200 | 330 kW | 2,000–2,500 kg/h |
These specifications are from Stokkermill’s current MULTI-FLEX product information.
Best suited to: Commercial cable recyclers, metal recyclers and resource recovery operations processing large and varied cable streams.
Why Stokkermill Cable Recycling?
Process Mixed Cable Sizes
The TURBO refining system allows fine, standard and larger-diameter cable to be processed without requiring extensive sorting by cable size beforehand.
Recover High-Quality Copper
Granulation, refining and density separation are designed to efficiently liberate copper from insulation and produce a clean recovered metal fraction.
Process More Than Standard Cable
Robust grinding systems expand the potential feed material to include aluminium cables and copper-aluminium radiators in addition to conventional copper cable.
Scale the System to Your Operation
From compact equipment processing approximately 100 kg/h through to industrial systems exceeding two tonnes per hour, the Stokkermill range allows the recycling system to be selected around available feedstock and required throughput.
Build a Complete Processing Line
MULTI-FLEX systems can be integrated with Stokkermill pre-shredders and conveyors, allowing Waste Initiatives to develop a complete cable recycling solution rather than supplying an isolated granulator.
From Scrap Cable to Recovered Copper
For businesses generating or receiving significant quantities of cable waste, processing the material can create an opportunity to recover more of its underlying commodity value rather than selling mixed or unprocessed cable.
The right system depends on more than tonnes per hour. Cable diameter, copper content, insulation type, contamination, feed consistency and the required quality of the final recovered material all influence equipment selection.
Complete Cable Recycling Solutions, Backed by Local Support
Waste Initiatives supplies Stokkermill cable and copper recycling technology in Australia through our Vertech range.
Our team can assist with equipment selection, system design, conveyors and ancillary equipment, installation, commissioning, operator training and ongoing servicing.
