Stokkermill Solar recycling systems provide scalable solutions for processing end-of-life photovoltaic panels and recovering valuable glass, aluminium, silicon, EVA and copper. Choose from semi-automatic entry-level and delamination systems through to high-capacity automatic plants designed for continuous industrial processing.
Overview
Solar Panel Recycling Systems
Complete, modular solutions for recovering valuable materials from end-of-life photovoltaic panels.
Stokkermill Solar combines panel preparation, delamination, size reduction, refining and separation technologies to recover valuable material fractions from end-of-life photovoltaic modules.
From entry-level semi-automatic processing to high-capacity automatic plants, systems can be configured according to the incoming panel type, processing volume, required automation and recovery objectives.
The Input Defines the Process
Not every photovoltaic panel requires the same processing approach.
Panel construction, condition, incoming volume and the required recovered materials all influence how a recycling system should be configured.
Stokkermill Solar provides modular platforms combining input preparation, mechanical delamination, refining and separation, allowing the processing line to be selected around the application rather than applying one technology to every feedstock.
Systems range from practical semi-automatic solutions for standard photovoltaic panels through to continuous industrial plants capable of processing a much broader range of modules.
Three Solar Recycling Solutions

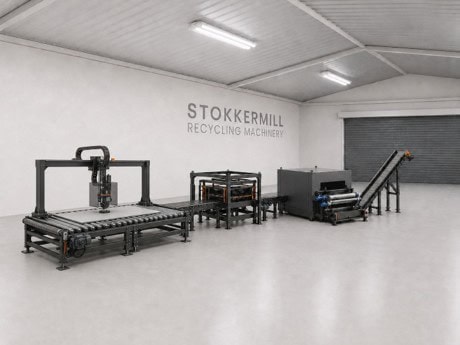

PV Entry Level
The PV Entry Level Recycling Line provides a compact starting point for operators entering photovoltaic panel recycling.
The process is organised around three main stages: removal of the aluminium frame, removal of the junction box and infrared delamination. This separates recoverable aluminium and glass while producing an EVA/silicon backsheet mat for potential further processing.
Technical Overview
| Specification | PV Entry Level |
|---|---|
| Processing capacity | 40–50 panels/h |
| Process | Semi-automatic |
| Installed power | 20–45 kW* |
| Approx. footprint | 10,000 × 3,000 × 2,100 mm* |
Process Flow
PV Panel → Frame Removal → Junction Box Removal → DLS Delamination
Outputs:
Aluminium Profiles → Junction Box → Glass → EVA/Silicon Backsheet

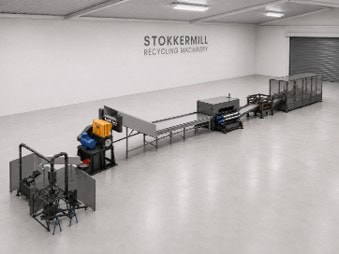

Solar Delamination
The Solar Delamination Line extends the process beyond initial panel preparation and delamination.
Following aluminium frame and junction box removal, the DLS Delaminator recovers glass and produces a remaining sandwich mat. An additional EVA-silicon refining stage then separates further glass, silicon-rich material, EVA and copper ribbon.
This provides a more complete material recovery process while retaining a semi-automatic plant configuration suited to lower processing volumes.
Technical Overview
| Specification | Solar Delamination |
|---|---|
| Processing capacity | <50 panels/h |
| Process | Semi-automatic |
| Installed power | 90–115 kW |
| Approx. footprint | 12,000 × 5,000 × 5,000 mm |
Process Flow
PV Panel → Frame Removal → Junction Box Removal → DLS Delaminator → EVA-Silicon Refining System
Recovered fractions:
Aluminium | Glass | Medium/Fine Glass | Silicon | EVA | Copper Ribbon | Mixed Metals | Copper

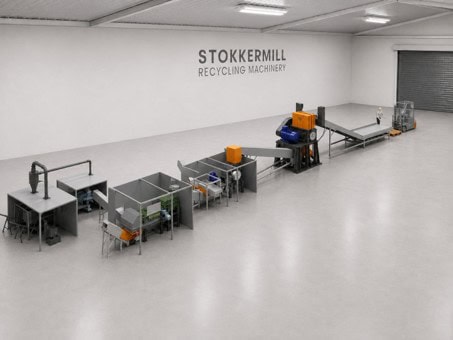

Solar Automatic
High-Capacity Automatic Solar Panel Recycling
Solar Automatic is Stokkermill’s industrial platform for continuous photovoltaic panel processing.
Unlike the semi-automatic configurations, the system is designed to accept a much broader range of modules, including:
- Monocrystalline
- Polycrystalline
- Bifacial
- Amorphous
- Thin-film
- Aluminium-framed
- Frameless
- Damaged modules
The system processes intact or damaged panels in a continuous automatic process and can be configured with a custom plant layout for 24/7 operation.
FROM 1,500 KG/H
Processing capacity
AUTOMATIC
Continuous processing
24/7
Engineered operation
MULTIPLE PANEL TYPES
Flexible input
Key outputs:
Aluminium | Glass | Silicon-rich fraction | EVA | Copper
Solar Automatic + WEEE Recycling
The Solar Automatic Integrated System can be configured to process more than photovoltaic panels.
Stokkermill confirms that the platform can also process WEEE Category 4, aluminium profiles and light metal scrap, allowing operators to diversify feedstock and potentially improve plant utilisation when photovoltaic panel volumes fluctuate.
From Solar Panels to Recovered Materials
The purpose of solar panel recycling is not simply to reduce panels in size. Effective processing progressively liberates and separates the different materials contained within the module.
Aluminium
Recovered from photovoltaic panel frames and separated for downstream metal recycling.
Glass
Recovered through delamination and separation, with different glass fractions generated according to the processing configuration.
Silicon
Further refining can produce a concentrated silicon-rich fraction from the photovoltaic module.
EVA
Polymer material separated from the glass and silicon-bearing fractions during advanced processing.
Copper
Recovered from junction boxes, electrical components and copper ribbon contained within photovoltaic modules.
Stokkermill Solar in Australia
Waste Initiatives supplies Stokkermill Solar recycling systems in Australia through our premium Vertech equipment range.
Our involvement extends beyond supplying the machinery. We can support the development of the complete processing solution, including equipment selection, ROI calculations, plant layouts, material handling, installation and commissioning.
Once operational, customers are supported by Waste Initiatives’ national service capability, technical support and locally stocked spare parts.
Enquire about this product
Talk to Waste Initiatives today to find out more about our waste & recycling solutions.
With hundreds of customers in all states & territories of Australia, you’re in good company. We’re worth a call.
Product
Stokkermill Solar Panel Recycling Systems
Stokkermill Solar recycling systems provide scalable solutions for processing end-of-life photovoltaic panels and recovering valuable glass, aluminium, silicon, EVA and copper. Choose from semi-automatic entry-level and delamination systems through to high-capacity automatic plants designed for continuous industrial processing.
