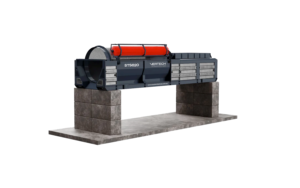

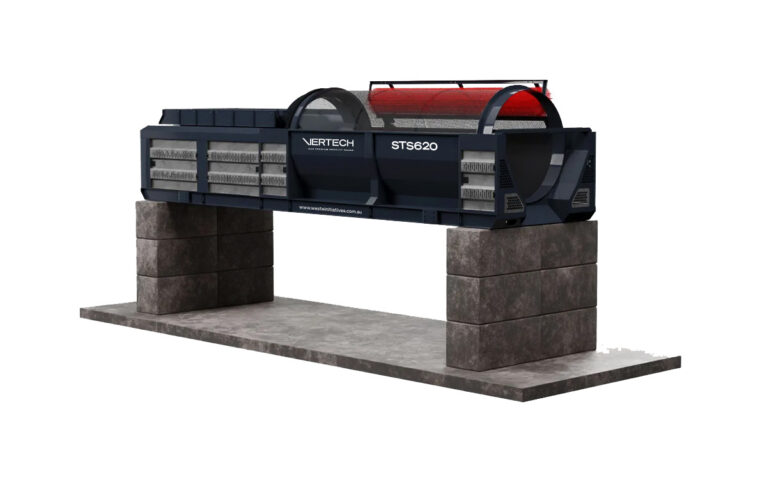

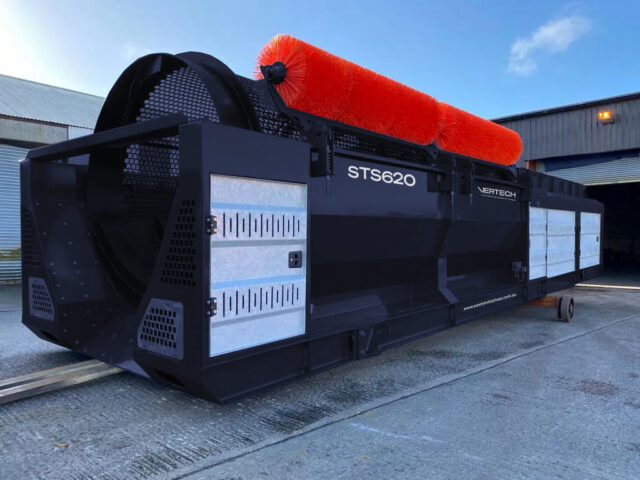

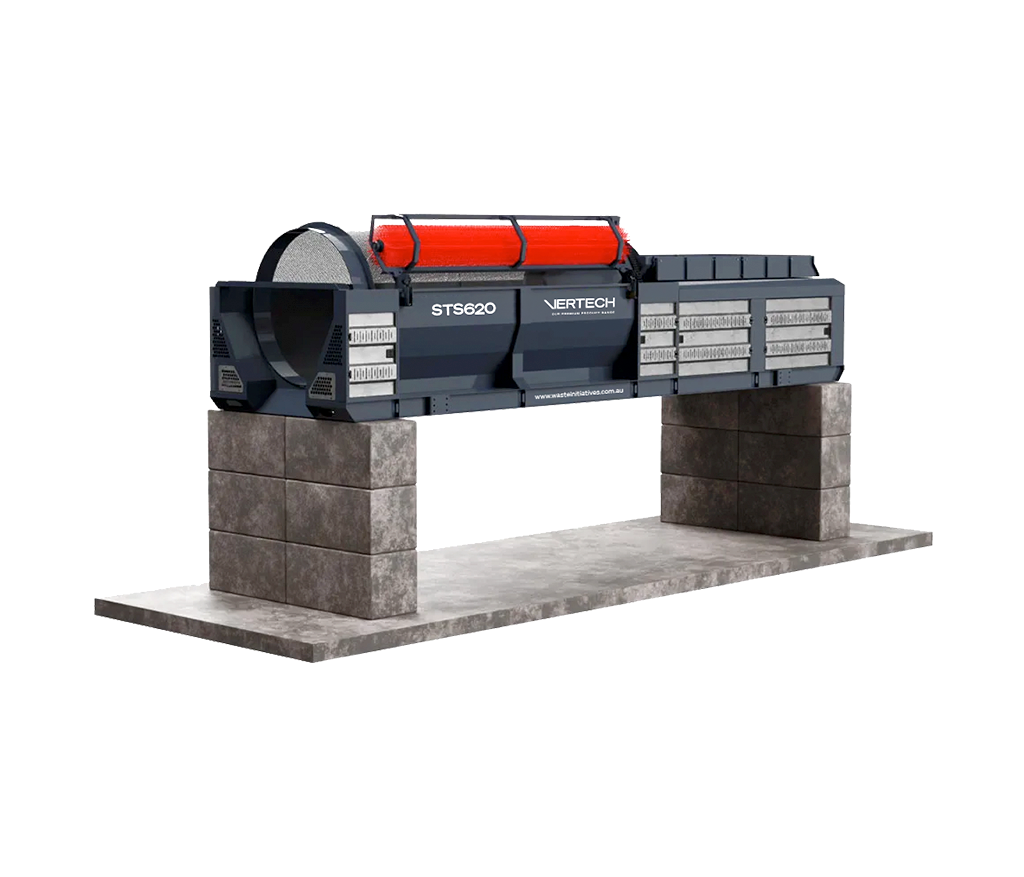

The Vertech STS620 Static Trommel is a heavy-duty screening solution engineered for high-capacity waste, recycling and organics processing applications. Featuring a 2.0 m x 5.5 m variable speed drum, robust steel construction and flexible drum configurations, it delivers efficient material separation with reliable long-term performance.
Overview
The Vertech STS620 Static Trommel is a high-capacity screening solution designed for demanding material processing operations. Built for versatility, efficiency and reliable performance, it can be integrated into new or existing plants to separate fines from oversize material across a wide range of waste, recycling, organics and aggregate applications.
With a large hopper, wide variable-speed infeed conveyor and 2.0 m x 5.5 m horizontal screening drum, the STS620 delivers strong production capacity while maintaining simple operation, low operating costs and straightforward maintenance.
Features
- Large capacity hopper with wide opening for efficient material loading
- Wide variable speed infeed conveyor with high torque drive system
- 2.0 m x 5.5 m horizontal trommel drum with variable speed operation
- Sliding feeder design allows rapid and uncomplicated drum changes
- Compatible with similar sized drums from other manufacturers
- 4-wheel electric drum drive powered by high torque gearmotors
- Available with mesh drums and lifters or punch plate drums with internal spiral
- Wide range of drum apertures and hole sizes available
- Rotating brush with self-cleaning tines helps maintain drum performance
- Modular block setup allows flexible working heights
- Heavy-duty bearings with grease pots reduce manual maintenance requirements
- User-friendly control panel for straightforward operation
- Emergency stop integrated into control panel
- Control panel can be remotely mounted where required
- Hinged doors, removable panels and lockable latches simplify maintenance access
- Robust steel construction with durable coating for long service life
- Suitable for a wide range of waste, recycling and screening applications
Options
- Hopper extensions for increased material capacity
- Chevron belt for improved material handling
- Steel dust containment hoods over drum
- Manually raised or hydraulically raised cleaning brush
Applications
- Wood recycling and biomass
- Construction and demolition waste
- Commercial and industrial waste
- Compost, topsoil and aggregates
- Household and skip waste
- RDF and SRF production
- Scrap metal, e-waste, glass and tyre recycling
- Plastics, paper and cardboard recycling
Built for Australian Conditions
The STS620 Trommel provides Australian operators with an engineered solution designed to improve material recovery performance.
Built for recovery.
Built for throughput.
Built for performance.
Suitable for
C&D Waste
Cardboard & Paper
Commingled
E-Waste
Glass
Hard Plastics
Metal/​Aluminium
Organic Waste
Plastic
Soft Plastics
Timber
Tyres
Product Gallery
Top
Enquire about this product
Talk to Waste Initiatives today to find out more about our waste & recycling solutions.
With hundreds of customers in all states & territories of Australia, you’re in good company. We’re worth a call.
Product
Vertech STS620 Static Trommel
The Vertech STS620 Static Trommel is a heavy-duty screening solution engineered for high-capacity waste, recycling and organics processing applications. Featuring a 2.0 m x 5.5 m variable speed drum, robust steel construction and flexible drum configurations, it delivers efficient material separation with reliable long-term performance.
Your Details
Related Equipment

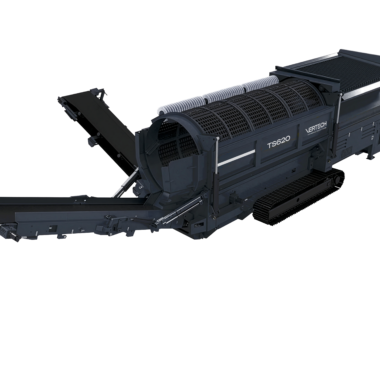

The Vertech TS620 Trommel is a heavy-duty tracked trommel screen designed for high-capacity screening of compost, mulch, green waste, topsoil and recycling materials. Combining mobility, fast setup and efficient material separation, the TS620 is suited to demanding waste and resource recovery operations.
The ZEMMLER® MULTI SCREEN® MS 6700 is the biggest mobile screening machine in the range of product.
The ZEMMLER® MULTI SCREEN® MS 4200 is designed for middle and big companies with different fields of applications.

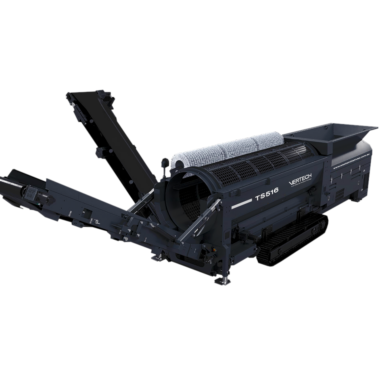

The Vertech TS516 Trommel is a compact mobile trommel screen for organics, topsoil, bark, compost and woodchip screening, delivering reliable material separation in a highly mobile package.
