The Vertech TS516 Trommel is a compact mobile trommel screen for organics, topsoil, bark, compost and woodchip screening, delivering reliable material separation in a highly mobile package.
Overview
The Vertech TS516 Trommel is a compact, high-productivity mobile screening solution designed for organics, topsoil, bark, compost and woodchip applications. With a 5.15 m long screening drum, variable speed operation and hydraulic conveyors for product separation, the TS516 is built to deliver consistent fines recovery and efficient stockpiling across recycling and screening operations.
Features
- Tracked mobile trommel screening unit
- Large capacity feed hopper
- 900 mm variable speed feeder conveyor
- 5.15 m screening drum with interchangeable screening media
- Drum cleaning brush for consistent screening performance
- 900 mm collection conveyor
- 650 mm transfer conveyor
- 800 mm fines conveyor with high discharge height
- Oversize discharge conveyor for separated materials
- Variable speed control for feeder and conveyors
- Heavy duty tracked chassis for on-site mobility
- Diesel powerpack with high efficiency engine
- Large access doors for service and maintenance
- Robust steel construction for demanding applications
- Capacity up to 150 TPH
- Maximum feed size up to 300 mm
- Maximum screen size up to 60 mm
Options
- Alternative screening drum sizes and mesh configurations
- Extended fines conveyor
- Additional stockpiling conveyors
- Remote control operation
- Dust suppression systems
Applications
- FOGO processing
- C&D waste screening
- Aggregate screening
- Mining applications
- Topsoil and compost screening
- Wood waste processing
Built for Australian Conditions
The TS516 Trommel provides Australian operators with a flexible, engineered solution designed to improve material recovery performance without the cost or complexity of fixed infrastructure.
Built for recovery.
Built for mobility.
Built for performance.
Suitable for
C&D Waste
Commingled
Organic Waste
Specifications
Weight 14,500kg
Drum Length: 5,150 mm
Drum Diameter 1,370 mm
Drum Angle Control 0–4°
Product Gallery
Top
Enquire about this product
Talk to Waste Initiatives today to find out more about our waste & recycling solutions.
With hundreds of customers in all states & territories of Australia, you’re in good company. We’re worth a call.
Product
Vertech TS516 Mobile Trommel
The Vertech TS516 Trommel is a compact mobile trommel screen for organics, topsoil, bark, compost and woodchip screening, delivering reliable material separation in a highly mobile package.
Your Details
Related Equipment
The ZEMMLER® MULTI SCREEN® MS 6700 is the biggest mobile screening machine in the range of product.
The ZEMMLER® MULTI SCREEN® MS 3200 is developed based on the increasing demand of compact machine for small businesses, local community as well for landscape gardening.
The ZEMMLER® MULTI SCREEN® MS 1000 expands the drum screening machine portfolio for gardening and landscaping with a further powerful professional machine.

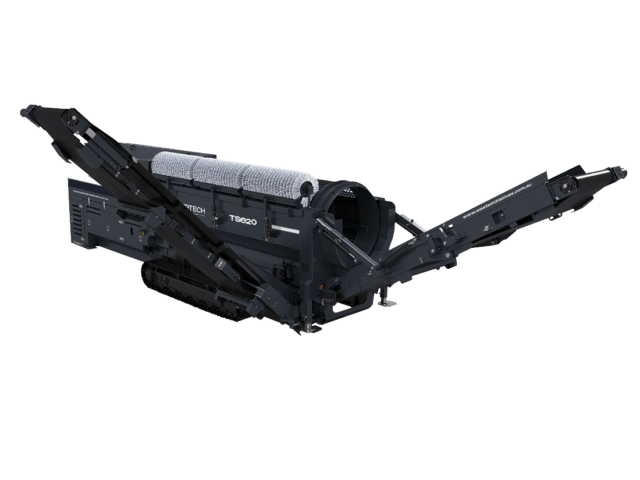

The Vertech TS620 Trommel is a heavy-duty tracked trommel screen designed for high-capacity screening of compost, mulch, green waste, topsoil and recycling materials. Combining mobility, fast setup and efficient material separation, the TS620 is suited to demanding waste and resource recovery operations.
