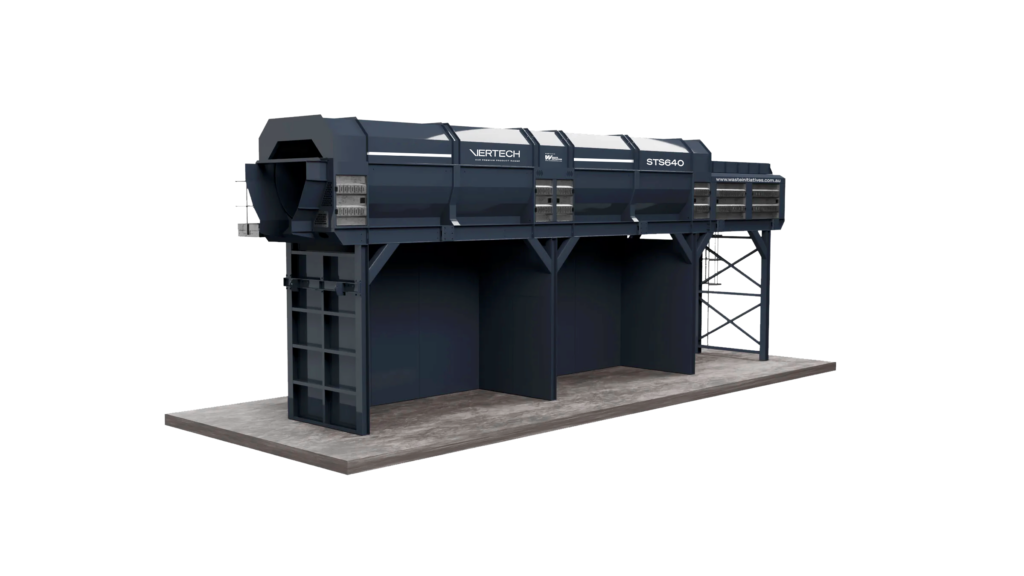

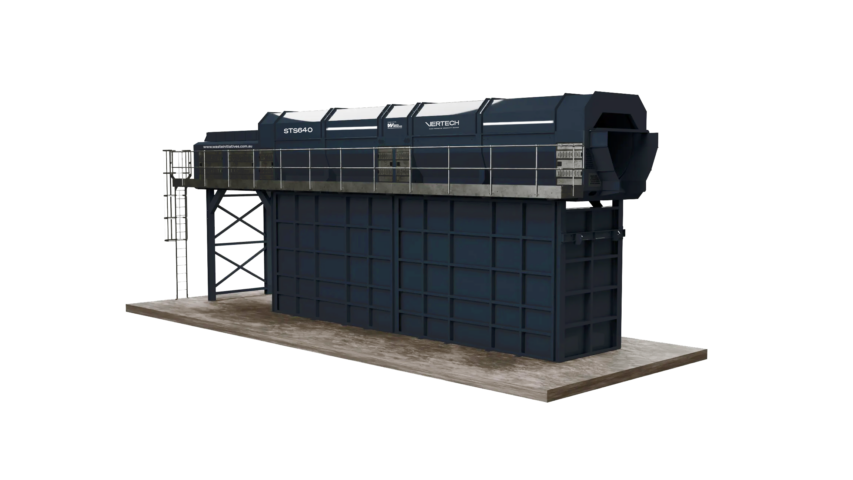

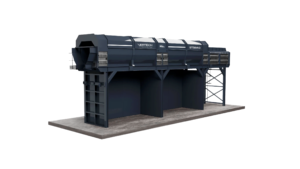

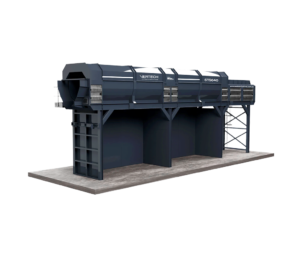

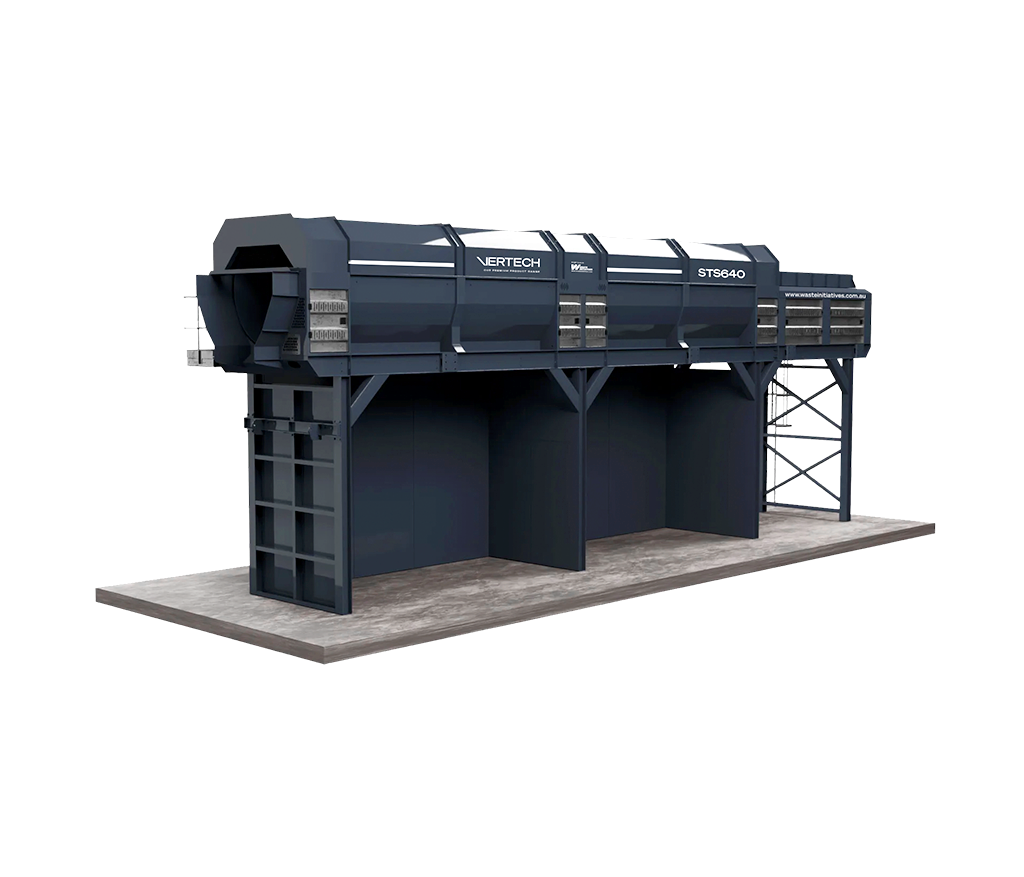

The Vertech STS640 Trommel is a heavy duty static screening solution designed for high-volume waste, recycling and material processing applications. Featuring a large 2.0 m x 12.8 m trommel drum, variable speed controls and efficient multi-fraction screening capability, it delivers reliable performance across compost, C&D, C&I, biomass, aggregate and waste recovery operations.
Overview
The Vertech STS640 Trommel is a high-capacity static screening solution designed for demanding waste, recycling and materials processing operations. With a 2.0 m x 12.8 m horizontal drum, variable speed control and the ability to screen two material fractions in a single pass, it delivers strong throughput with efficient separation across a wide range of applications.
Features
- Large capacity hopper with wide opening for material loading
- Wide infeed conveyor with variable speed and high torque drive
- 2m (6’7”) x 12.8m (42’) horizontal drum with variable speed
- Drum allows for screening of 2 different material fractions in a single pass
- Feeder slides back to allow for uncomplicated drum changes
- 8-wheel electric drive for drum from high torque gearmotors
- Choice of drums fitted with mesh with lifters or punch plate with internal spiral
- Drums available with vast range of hole sizes and apertures
- 2 discharge bays with strengthened steel walls for collecting fines material
- Rotating brush with self-cleaning tines for cleaning drum
- Heavy duty bearings with grease pots minimising need for manual greasing
- Control panel with user friendly interface for straightforward operation
- Emergency stop on control panel for machine shut down
- Control panel can be remote mounted in any location desired
- Hinged doors with lockable latches and removable panels for maintenance
- Galvanised platform with ladder for service access
- Robust steel construction with tough coating ensures long term durability
- Can be used in wide range of applications
Options
- Hopper extensions for increased capacity
- Chevron belt for infeed conveyor
- Steel hoods over drum for containing dust
- Manually or hydraulically raised brush
- Fines conveyor, complete with belt scrapers and full guarding
Applications
- Wood recycling and biomass production
- Construction and demolition waste (C&D)
- Commercial and industrial waste (C&I)
- Compost, topsoil and aggregate production
- Household waste and skip waste processing
- Refuse derived fuel (RDF) production
- Solid recovered fuel (SRF) production
- Scrap metal, e-waste, glass and tyre recycling
- Plastics, Paper & Cardboard Recycling
Built for Australian Conditions
The STS640 Trommel provides Australian operators with an engineered solution designed to improve material recovery performance.
Built for recovery.
Built for throughput.
Built for performance.
Suitable for
C&D Waste
Cardboard & Paper
E-Waste
General Waste
Glass
Metal/Aluminium
Organic Waste
Plastic
Soft Plastics
Timber
Tyres
Product Gallery
Top
Enquire about this product
Talk to Waste Initiatives today to find out more about our waste & recycling solutions.
With hundreds of customers in all states & territories of Australia, you’re in good company. We’re worth a call.
Product
Vertech STS640 Static Trommel
The Vertech STS640 Trommel is a heavy duty static screening solution designed for high-volume waste, recycling and material processing applications. Featuring a large 2.0 m x 12.8 m trommel drum, variable speed controls and efficient multi-fraction screening capability, it delivers reliable performance across compost, C&D, C&I, biomass, aggregate and waste recovery operations.
