Download Brochure| Height | 2474 mm |
| Width | 2178 mm |
| Length | 3016 mm |
| Capacity | Chip Output: 1.4” (35 mm), 2” (50 mm), 3.6” (90 mm) |
| Cutting Chamber (Width) | 52" (1320 mm) |
| Shaft (Width) | Diameter: 2 15/16 (x7) |
The Barclay Classifier, adaptable to 2” (50 mm), 4” (100 mm) and 6″ (150 mm) output sizing, complements the Barclay shredders and conveyors, by improving operational efficiency, ensuring only the rubber that requires further size reduction is reprocessed.
The classifer optimises the tyre shredding system by accurately screening tyres of consistent sizing, to ensure the maximum amount of usable material is produced from each tyre.
With a 50 ft² (4.6 m²) screening area and an integrated 5 hp inverter gearmotor, it economically processes up to 16 tons of material per hour. 7 heavy-duty shafts and disc screening with abrasion-resistant discs, maximise uptime and minimise maintenance, increasing work quality and production.
Features
- Large screening area of 50 sq Ft (4.6 m2) handles a wide variety of tyres.
- Capable of screening for 6" (150 mm) chip sizing meeting international export standards. Barclay also offers 4-inch or 2-inch chip sizes.
- High-quality material in heavy-duty shafts and abrasion-resistant discs designed to withstand the wear and tear of continuous use and minimise regular maintenance.
- High-level sorting accuracy ensures the shredder is processing tyres of a consistent size and type.
- Easy to maintain and service.
- Feed is reversible and accepts chute.
- Removable legs
Optional Extras
- Adapable to 2” (50 mm) and 4” (100 mm) chip sizing
- Optional in-feed and out-feed conveyors.
- Add-on Primary and Secondary shredders for a complete tyre shredding system.
×![]()
Technical Specifications
Enquire About
This Product
The Barclay Classifier, adaptable to 2” (50 mm), 4” (100 mm) and 6″ (150 mm) output sizing, complements the Barclay shredders and conveyors, by improving operational efficiency, ensuring only the rubber that requires further size reduction is reprocessed.
The classifer optimises the tyre shredding system by accurately screening tyres of consistent sizing, to ensure the maximum amount of usable material is produced from each tyre.
With a 50 ft² (4.6 m²) screening area and an integrated 5 hp inverter gearmotor, it economically processes up to 16 tons of material per hour. 7 heavy-duty shafts and disc screening with abrasion-resistant discs, maximise uptime and minimise maintenance, increasing work quality and production.

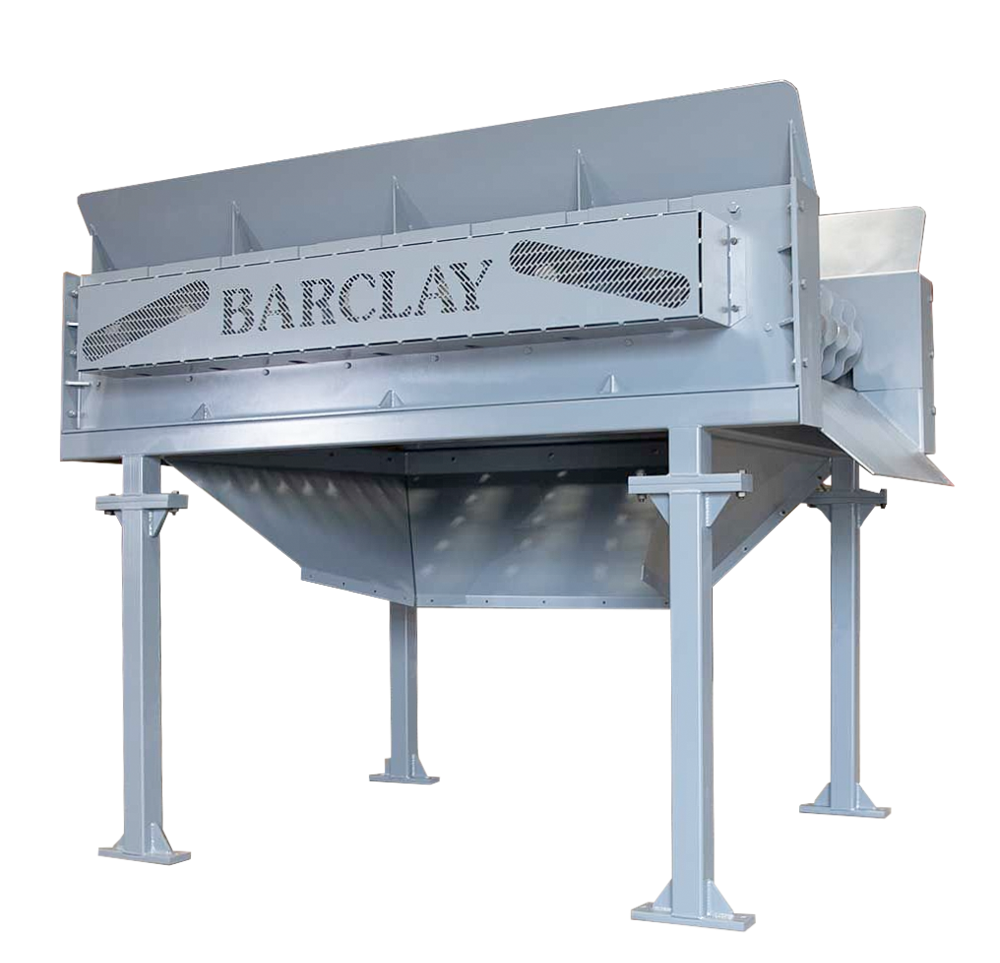

Barclay Classifier
Barclay Classifier, adaptable to 2” (50 mm), 4” (100 mm) and 6" (150 mm) sizes, complements the Barclay shredders and conveyors for a complete tyre shredding system for your needs. This machine improves operational efficiency by ensuring only the rubber that requires further size reduction is reprocessed.
